BaykON LOAD CELLS
The highest point of weighing technology around the world. Baykon beam type, ring type and compression type digital load cells with a capacity from 500 Kg to 330 tons.
• Increases the weighing accuracy by eliminating a very low analog signal carriage problems.• IP68 and stainless steel,• Fully compatible with Baykon digital load cell terminals.• Since it carries digital information, it is not affected by radiation and radio frequencies of the environment.

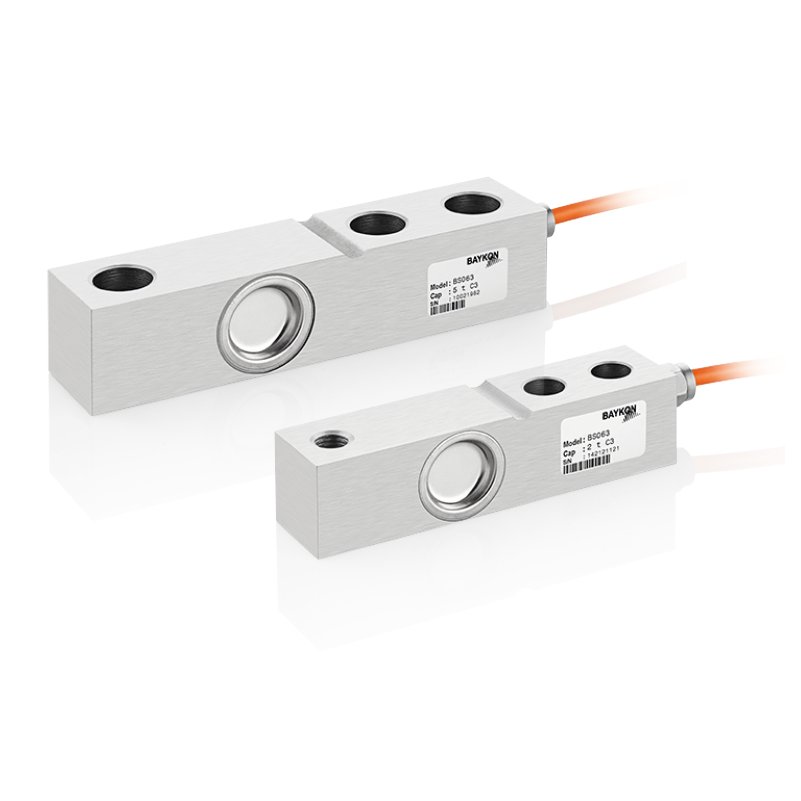

BS063 / BS063S BEAM LOAD CELL
Baykon BS063 / BS063S Beam Load Cell is a Welded Nickel Plated Alloy Steel / Stainless Steel Load Cell available a wide range of capacities from 150 kg to 5000 kg.
Key Features
– 150~5000 kg Capacities
– OIML R60 Approved
– Metric Threaded and Blind Hole Types
– Alloy Steel & Stainless Steel
– Protection Class: IP68

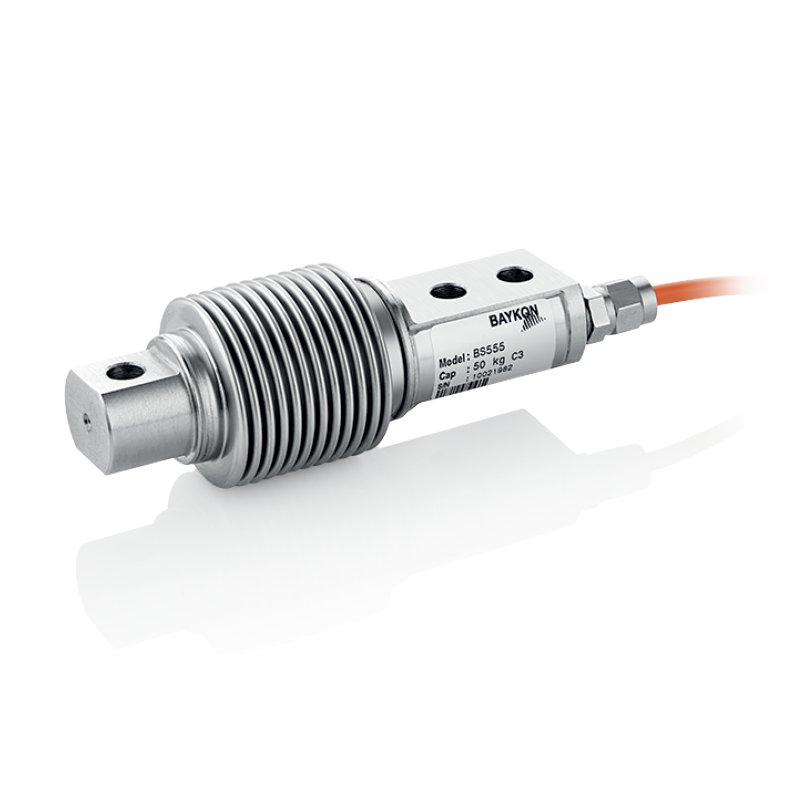

BS555 BEAM LOAD CELL
Baykon BS555 Beam Load Cell is a Welded Bending Beam Type Nickel Plated Alloy Steel Load Cell with Stainless Steel Bellow. It is available a wide range of capacities from 5 kg to 500kg.
Key Features
– 5~500 kg Capacities
– OIML R60 Approved
– Stainless Steel Bellow
– IP68 Protection Class

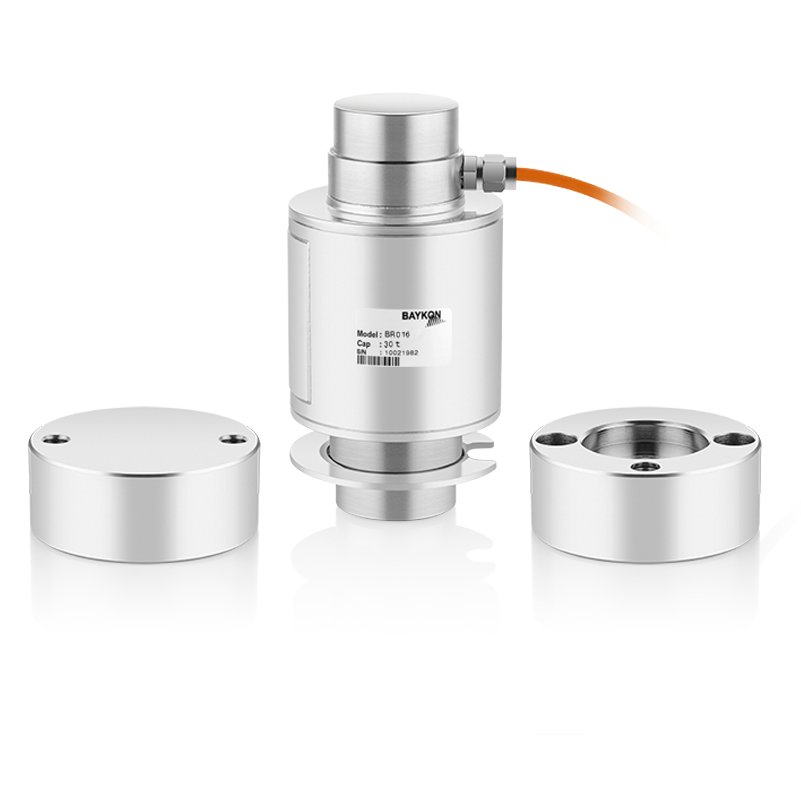

BR016 COMPRESSION LOAD CELL
Baykon BR016 Compression Load Cell is a High Performance Fully Welded Compression Type Load Cell. It perfect fits for use in high capacity weighing systems such as truck scales, axle scales, heavy capacity floor scales, tank scales, ship weighing and other heavy capacity industrial applications.
Key Features
– Capacities: 10~50 t
– OIML R60 Approved
– Alloy Steel Construction
– Protection Class: IP68
BR016S COMPRESSION LOAD CELL
Baykon BR016S Compression Load Cell is a High Performance Fully Welded Compression Type Load Cell. It perfect fits for use in high capacity weighing systems such as truck scales, axle scales, heavy capacity floor scales, tank scales, ship weighing and other heavy capacity industrial applications.
Key Features
– Capacities: 10~50 t
– Stainless steel construction
– Protection class: IP68

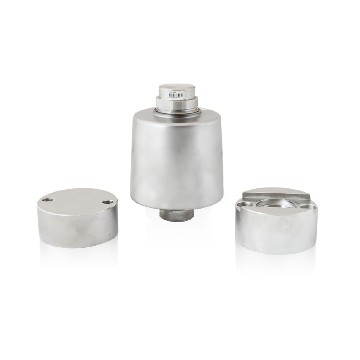

BR020 COMPRESSION LOAD CELL
Baykon BR020 Compression Load Cell is a high performance fully welded Compression Type Load Cell. It perfectly fits for use in high capacity weighing systems such as truck scales, axle scales, heavy capacity floor scales, tank scales, ship weighing and other heavy capacity industrial applications.
Key Features
– Capacities: 10~60 t
– OIML R60 approved
– Stainless steel contruction
– Protection class: IP68

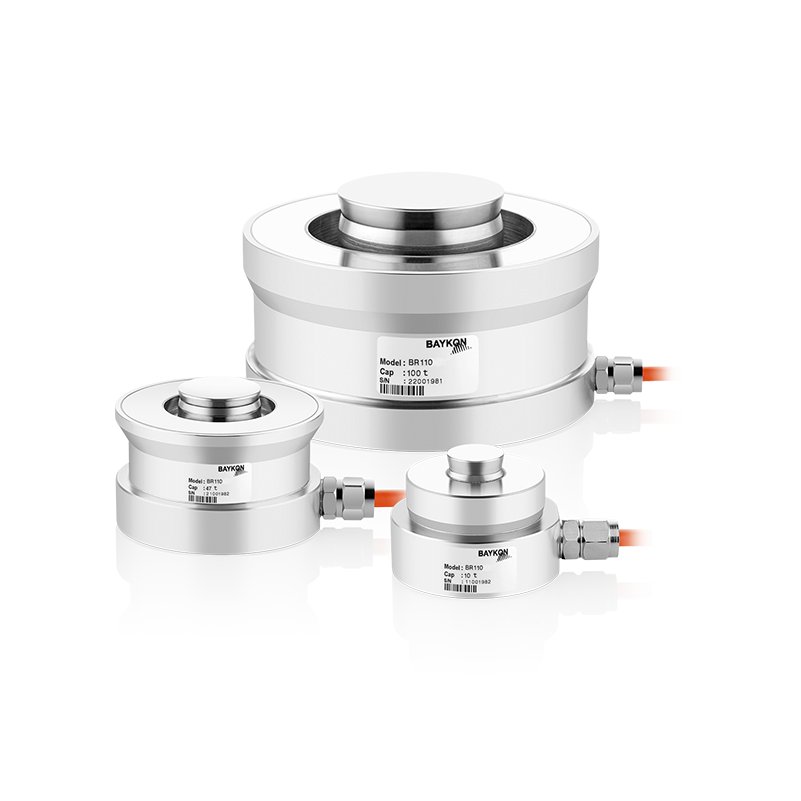

BR110 / BR110S / BR110HT COMPRESSION LOAD CELL
Baykon BR110 Compression Load Cell is a high performance fully welded Compression Type Load Cell with IP68 protection to use in harsh environments. Alloy steel and stainless steel options are available.
Key Features
– Capacities: 1~470 t
– Alloy stell construction
– High accuracy
– Protection class: IP68
– HT type for 150°C

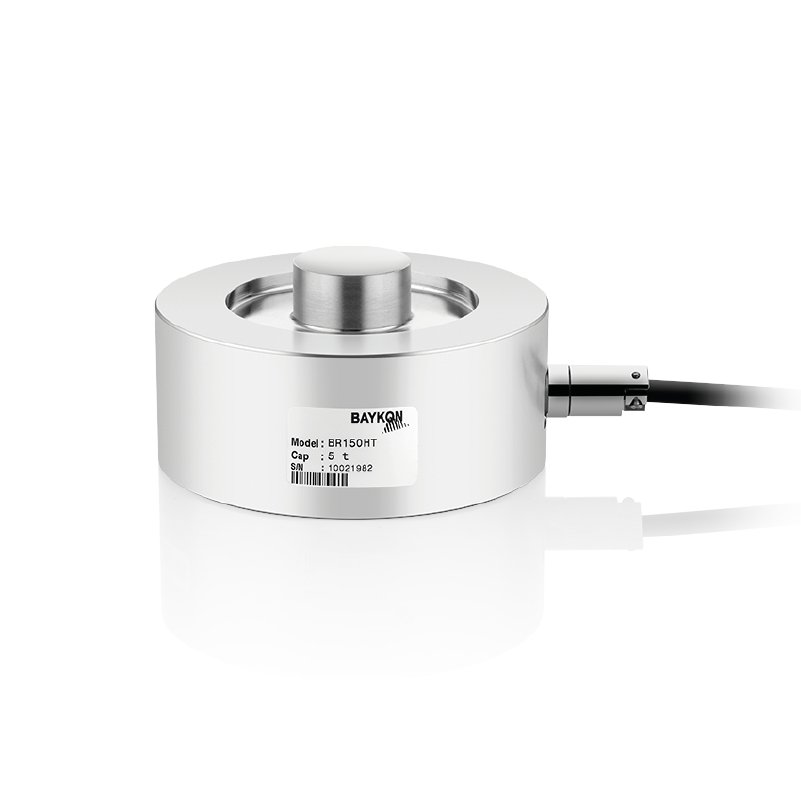

BR150 / BR150HT COMPRESSION LOAD CELL
Baykon BR150HT Compresion Load Cell specially designed for high temperature applications.
Key Features
– Capacities: 1 / 2 / 3 / 5 / 10 t
– Stainless stell construction
– Low profile
– Protection class: IP68
– High temperature resistant up to 150°C

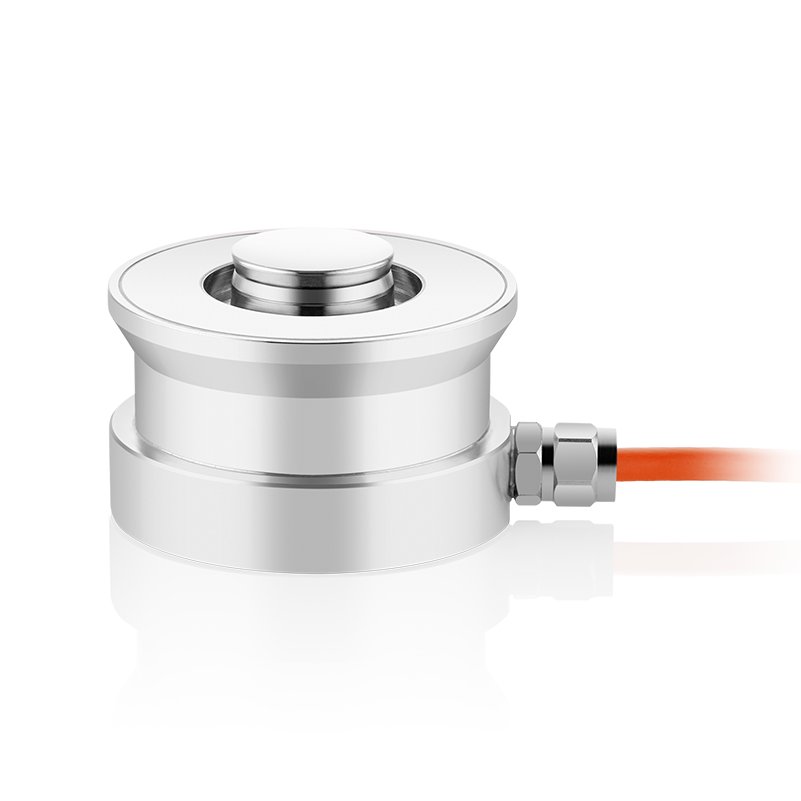

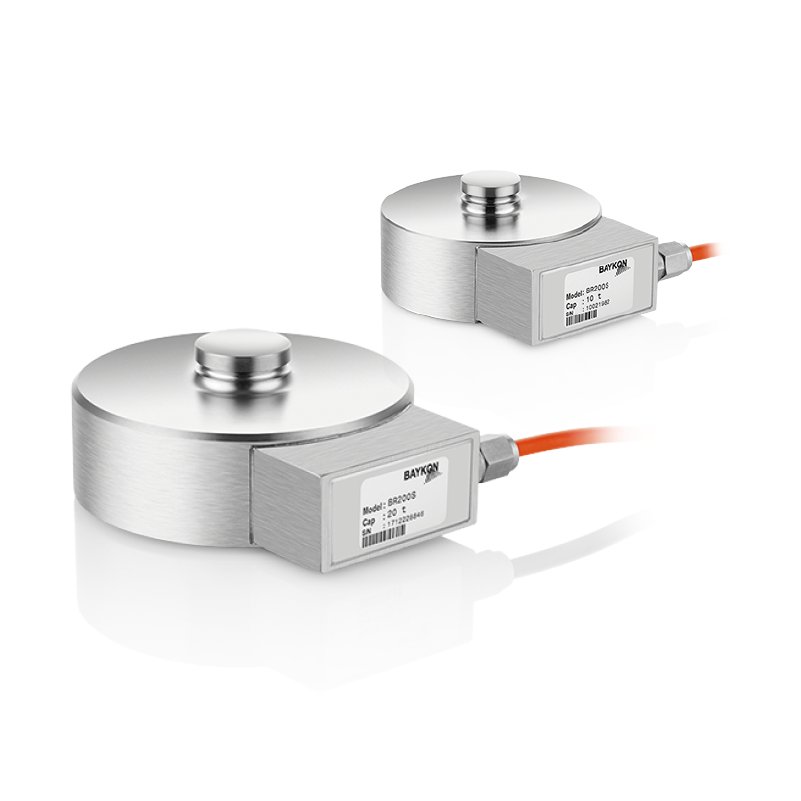

BR200S COMPRESSION LOAD CELL
Baykon BR200S Compression Load Cell is a low profile, high performance stainless steel Ring Torsion Type Load Cell with complete IP67 hermetic sealing.
Key Features
– Capacities; 5, 10, 15, 20, 30, 50 t
– OIML R60 approved (Except 5t)
– Low profile
– Stainless steel
– IP67 hermetically sealed

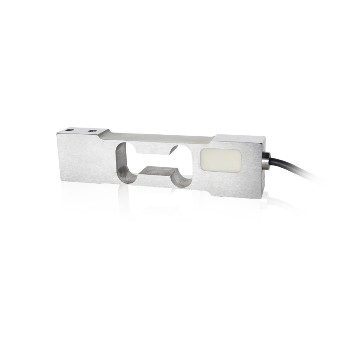

LP022 SINGLE POINT LOAD CELL
Baykon LP022 is Aluminium Single Point Load Cell with IP65 Protection. It is suitable for bench scales, counting scales, balances, packing machines and testing devices for force measurement.
Key Features
– Capacities: 8~40 kg
– Aluminum Construction
– Protection Class: IP65
– Platform Size (recommended): 250 x 350 mm

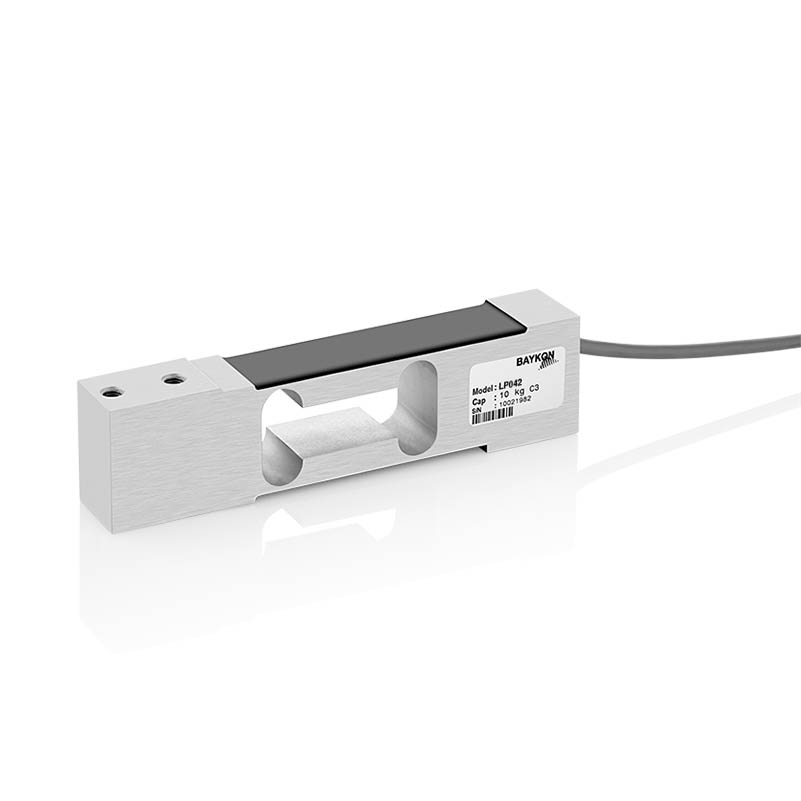

LP042 SINGLE POINT LOAD CELL
Baykon LP042 Single Point Load Cell with IP65 Protection. It is suitable for bench scales, counting scales, balances, packing machines and testing devices for force measurement.
Key Features
– Capacities: 8~100 kg
– OIML approved (20~100 kg)
– Aluminium construction
– Protection class: IP65
– Maximum platform size; Loading acc.to OIML R76 : 400 x 400 mm
LP042S SINGLE POINT LOAD CELL
Baykon LP042S Single Point Load Cell with IP65 Protection. It is suitable for bench scales, counting scales, balances, packing machines and testing devices for force measurement.
Key Features
– Capacities: 8~100 kg
– Stainless Steel
– Protection Class: IP65
– Maximum Platform Size: 400 x 400 mm

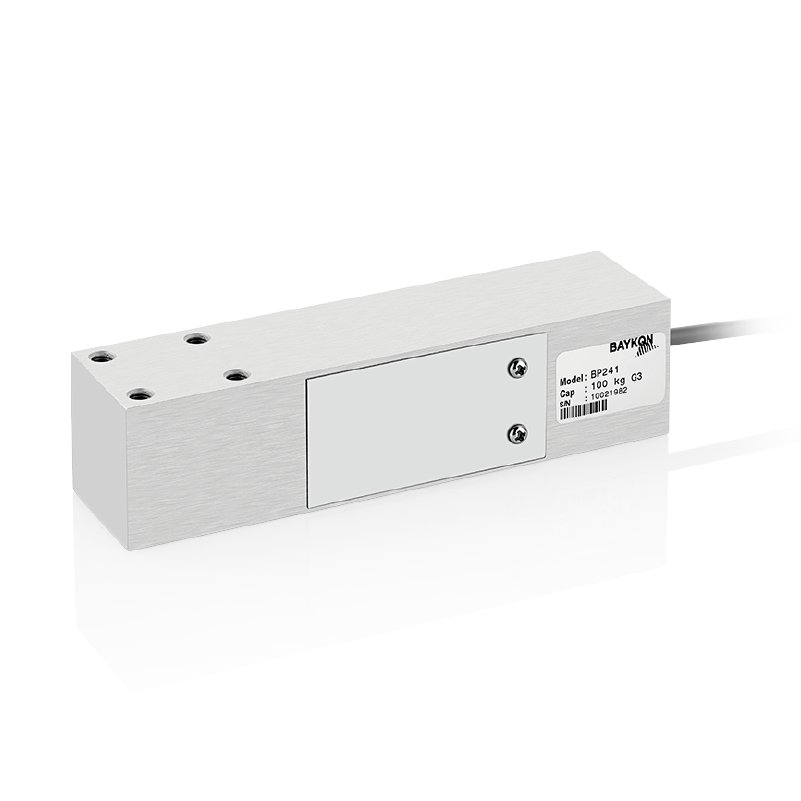

BP241 SINGLE POINT LOAD CELL
Baykon BP241 is Aluminium-Alloy Construction and Adhesive Sealed BP241 Single Point Type Load Cell with IP66 Protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 50~250 kg
– Aluminium
– Alloy Single Point Type
– Suitable for Single and Double Load Cell
Structured Platform Scales
– Maximum Platform Size: 400 x 400 mm
– Protection Class: IP66

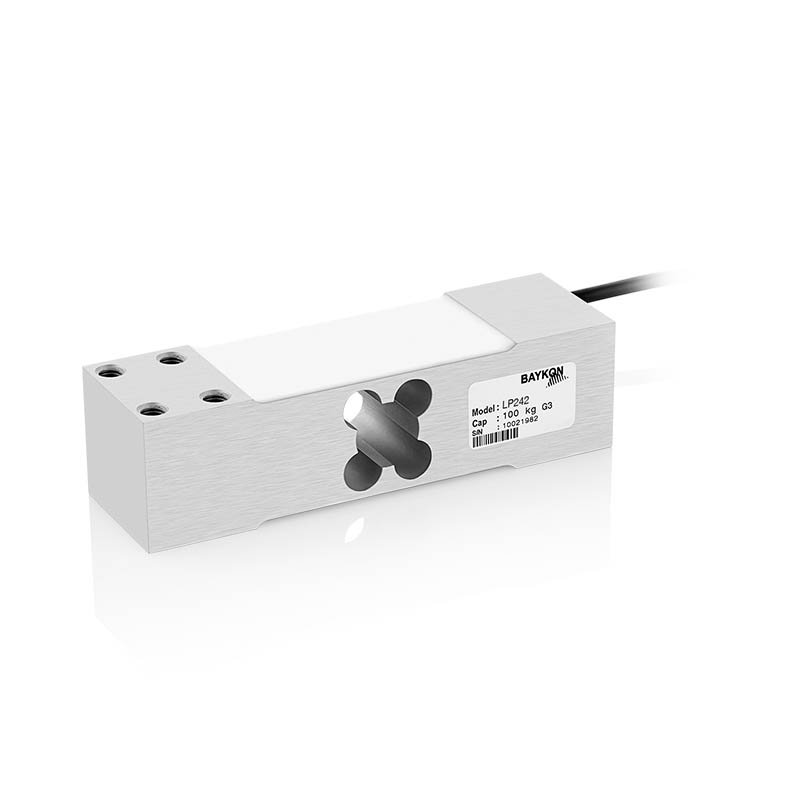

LP242 SINGLE POINT LOAD CELL
Baykon LP242 is Aluminium-Alloy Construction and Adhesive Sealed LP242 Single Point Type Load Cell with IP65 Protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 50~500 kg
– OIML Approved (100~500 kg)
– Aluminium Construction
– Protection Class: IP65
– Max.Platform Size: 500 x 500 mm

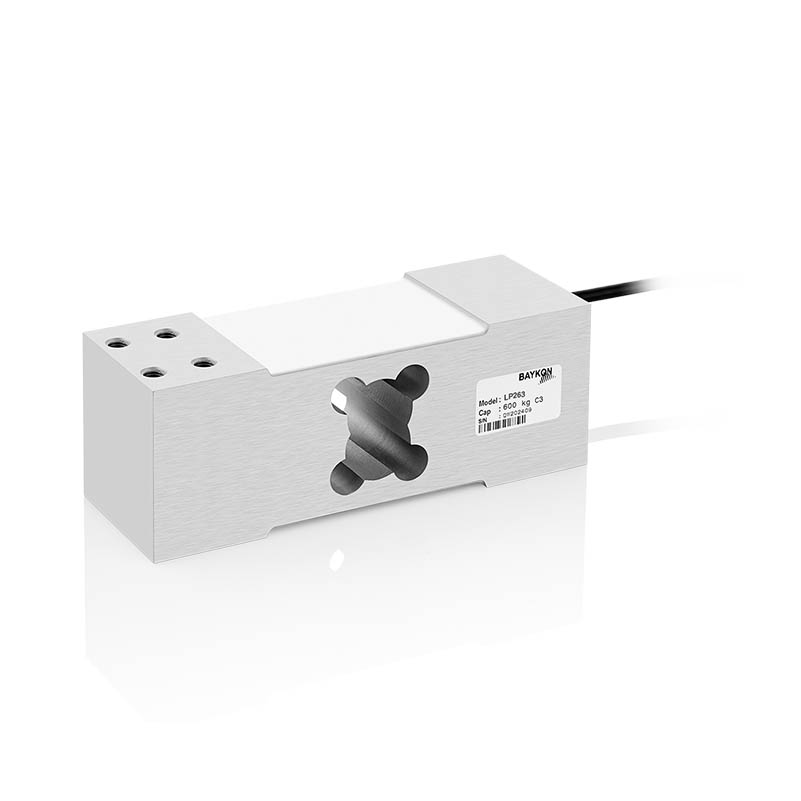

LP263 SINGLE POINT LOAD CELL
Baykon LP263 is OIML Approved Aluminium-Alloy Construction and Adhesive Sealed LP263 Single Point Type Load Cell with IP65 Protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 150~750 kg
– OIML R60 approval
– Aluminium construction
– Protection class: IP65
– Max.platform size: 600 x 600 mm
LP263S SINGLE POINT LOAD CELL
Baykon LP263S is OIML Approved Stainless Steel Construction and Adhesive Sealed LP263S Single Point Type Load Cell with IP65 Protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 50~250 kg
– OIML R60 Approval
– Stainless Steel
– Protection Class: IP65
– Max. Platform Size: 600 x 600 mm
LP263SW SINGLE POINT LOAD CELL
Baykon LP263SW is OIML Approved Stainless Steel Construction and Hermetically Welding Sealed LP263SW Single Point Type Load Cell with IP68 Protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 250~1250 kg
– OIML R60 Approval
– Stainless Steel
– Protection Class: IP68
– Max. Platform Size: 600 x 600 mm
BP320 SINGLE POINT LOAD CELL
Baykon BP320 is OIML approved aluminium-alloy construction and adhesive sealed BP320 Single Point Type Load Cell with IP66 protection. It is suitable for floor scales, counting scales, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 50~2000 kg
– OIML R60 Approval
– Aluminium Construction
– Protection Class: IP66

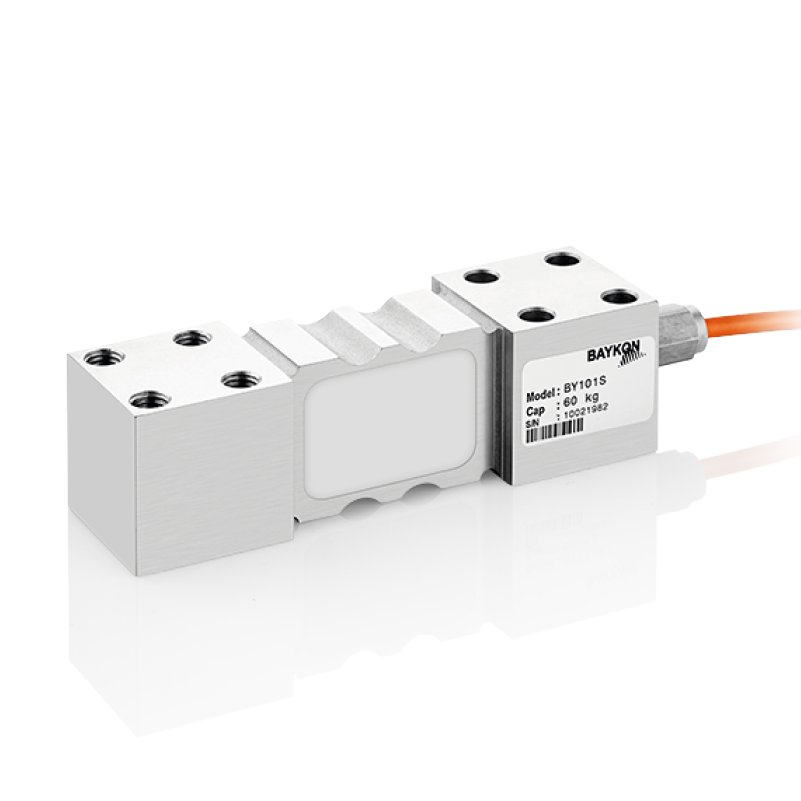

BY101S SINGLE POINT LOAD CELL
Baykon BY101S Single Point Type Load Cell with IP66 protection. It is suitable for bench scale, counting scale, packing machines and similar electronic weighing devices or testing machines.
Key Features
– Capacities: 30~300 kg
– Stainless Steel Construction
– Protection Class: IP66
– High Accuracy

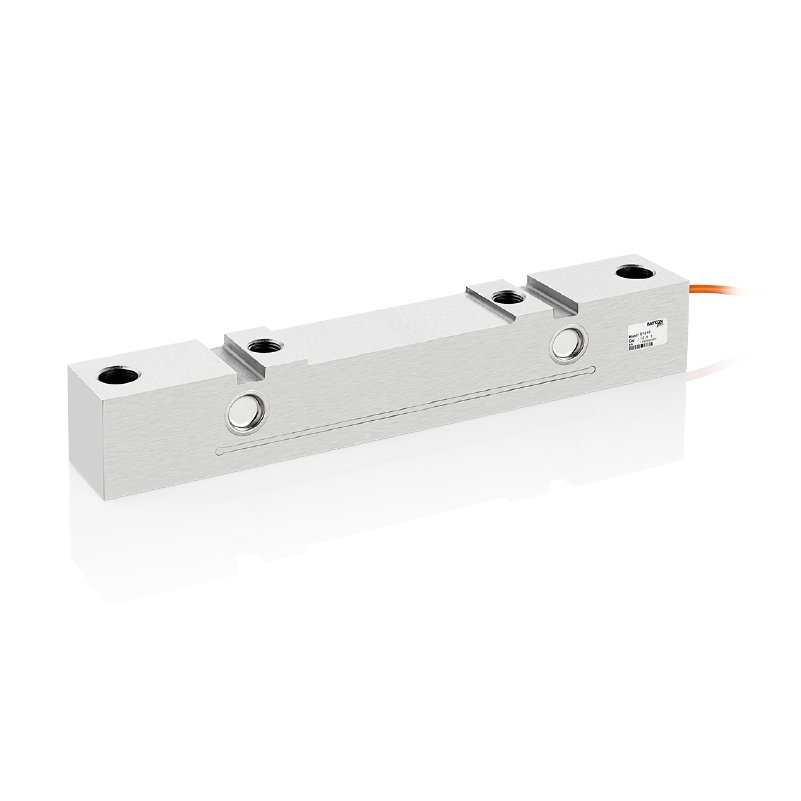

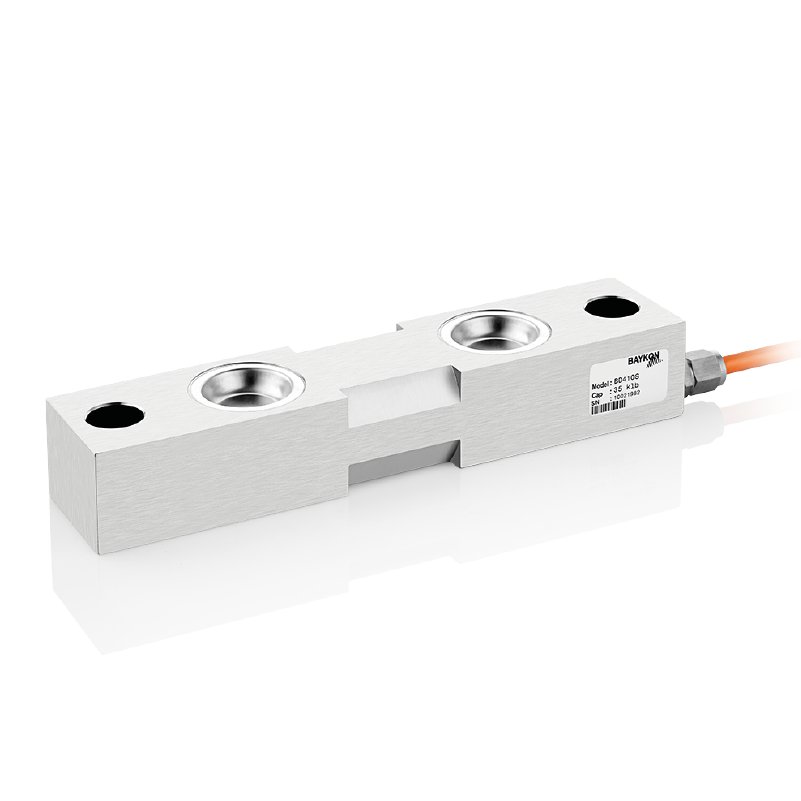

BD410 / BD410S DOUBLE ENDED BEAM LOAD CELL
Baykon BD410 / BD410S is nickel plated alloy steel or stainless steel BD410 / BD410S Double Ended Shear Beam Type Load Cell designed for high capacity silo and tank weighing applications. It is welded construction provides IP68 environmental protection.
Key Features
– Capacities: 10.25 and 35 klb
– BD410 Nickel Plated Alloy Steel
– BD410S Stainless steel
– Protection Class: IP68
– High Accuracy

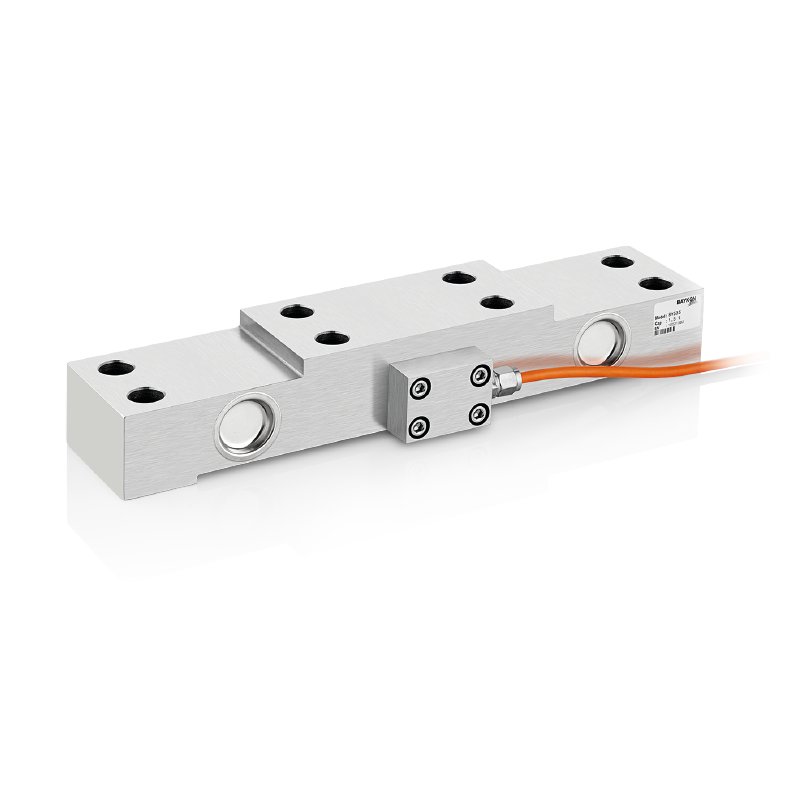

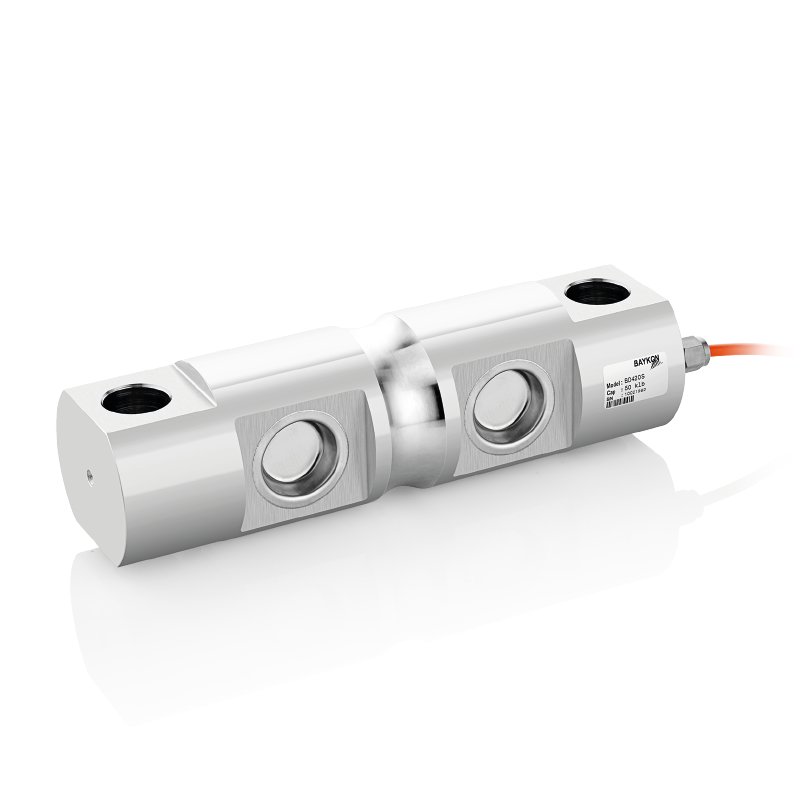

BD420 / BD420S DOUBLE ENDED BEAM LOAD CELL
Baykon BD420 / BD420S is nickel plated alloy steel or stainless steel BD420 / BD420S Double Ended Shear Beam Type Load Cell designed for high capacity silo and tank weighing applications. It is welded construction provides IP68 environmental protection.
Key Features
– Capacities: 50, 70 and 100 klb
– BD420 Nickel Plated Alloy Steel
– BD420S Stainless Steel
– Protection Class: IP68
– High Accuracy
BY535 DOUBLE ENDED BEAM LOAD CELL
Baykon BY535 is a Special Type, alloy steel construction BY535 Double Ended Shear Beam Load Cell and has been specifically designed for the high fatique stresses, on board weighing, ship weighing, etc. applications.
Key Features
– Capacities: 1.5~10 t
– Alloy Steel Construction
– Protection Class: IP68
– High Accuracy
BY540 DOUBLE ENDED BEAM LOAD CELL
Baykon BY540 is Welded Alloy Steel Construction BY540 Double Ended Shear Beam Load Cell specially designed for railway scales.
It is also suitable for ship weighing and similar high capacity weighing applications.
Key Features
– Capacities: 12.5 ~ 30 t
– Alloy Steel Construction
– Protection Class: IP67
– High Accuracy

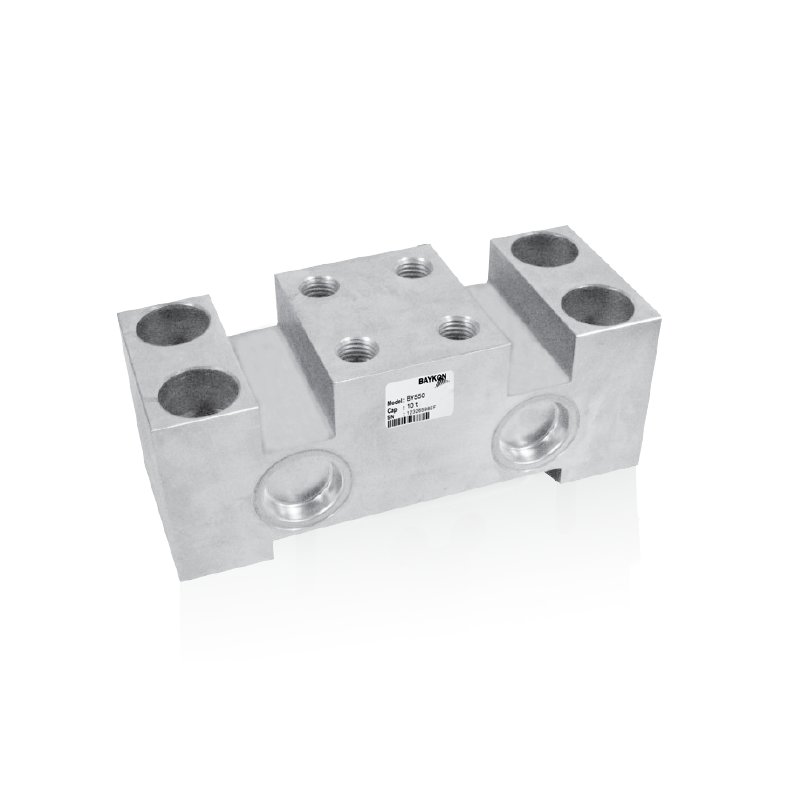

BY550 DOUBLE ENDED BEAM LOAD CELL
Baykon BY550 is Welded, IP67 Protected Steel Construction BY550 Double Ended Shear Beam Load Cell up to 50t capacity.
It can be used safely in harsh environments like steel plants such as melting pot weighing, ship and yacht weighing, high capacity industrail weighing processes and special weighing systems.
Key Features
– Capacities: 10~50 t
– Alloy Steel Construction
– High Accuracy
– Protection Class: IP67

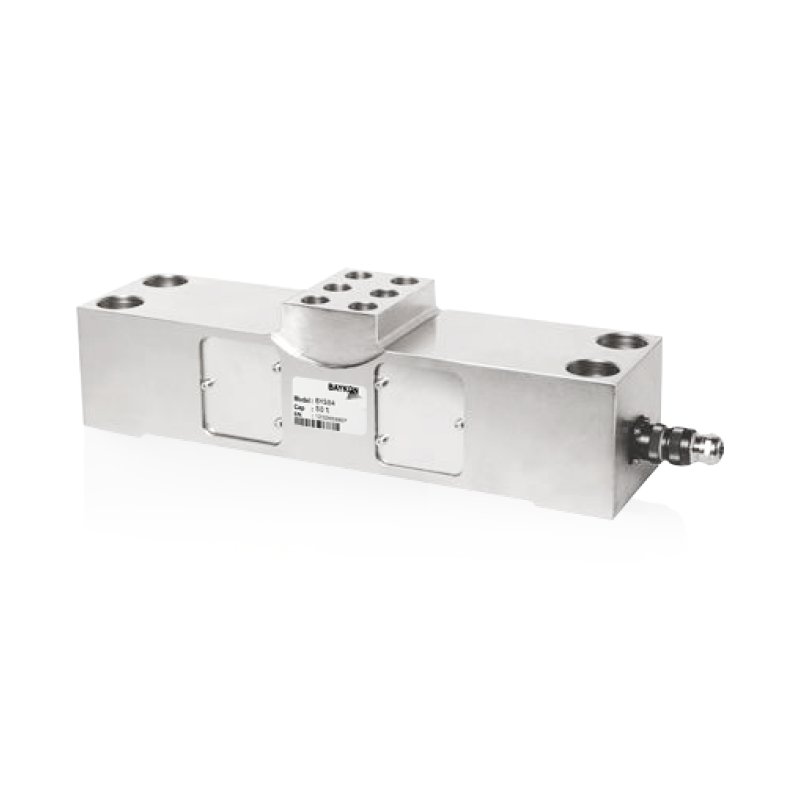

BY554 / BY554HT DOUBLE ENDED BEAM LOAD CELL
Baykon BY554 is a Special Type, Steel Construction BY554 / BY554HT Double Ended Shear Beam Load Cell. It is specifically designed for the high fatique stresses, ship and melting pot weighing, very heavy capacity weighing systems and industrial process.
BY554HT model is designed for high temperature environments up to 150°C degrees.
Key Features
– Capacities: 50~200 t
– Alloy Steel Construction
– High Accuracy
– Protection Class: IP67
– HT Type for 150°C

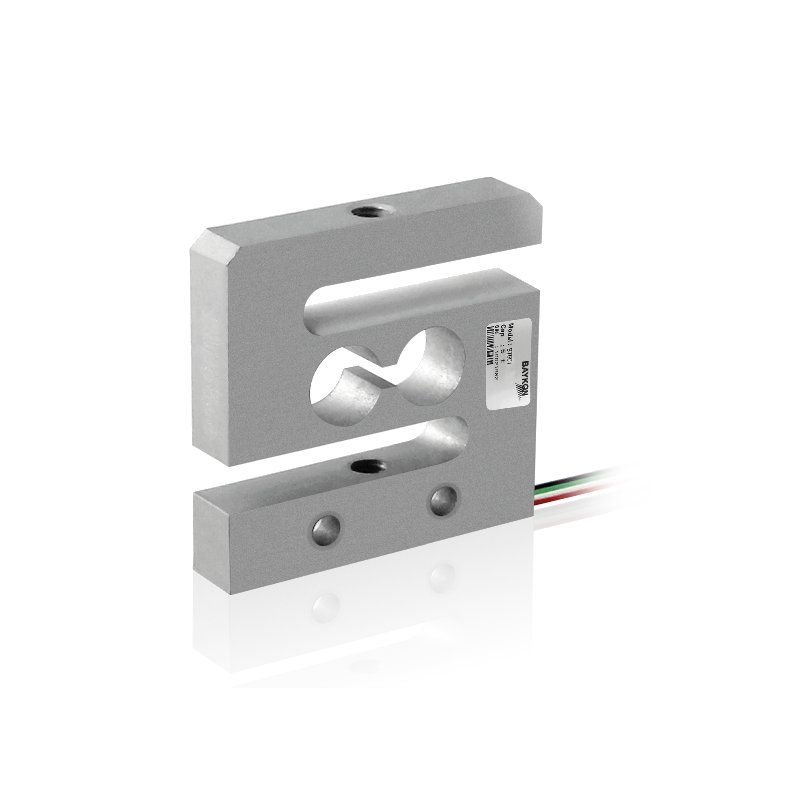

BT601 TENSION LOAD CELL
Baykon BT601 is low-cost and high performance BT601 Tension Type Load Cell. They are manufactured from high durability aluminium construction.
BT601 series load cells perfectly fit for use in low capacities weighing applications, suspended hopper weighing and general test or force measurement.
Key Features
– Capacities; 2 kg / 5 kg / 10 kg
– High Durable Aluminium Construction
– Protection Class IP65

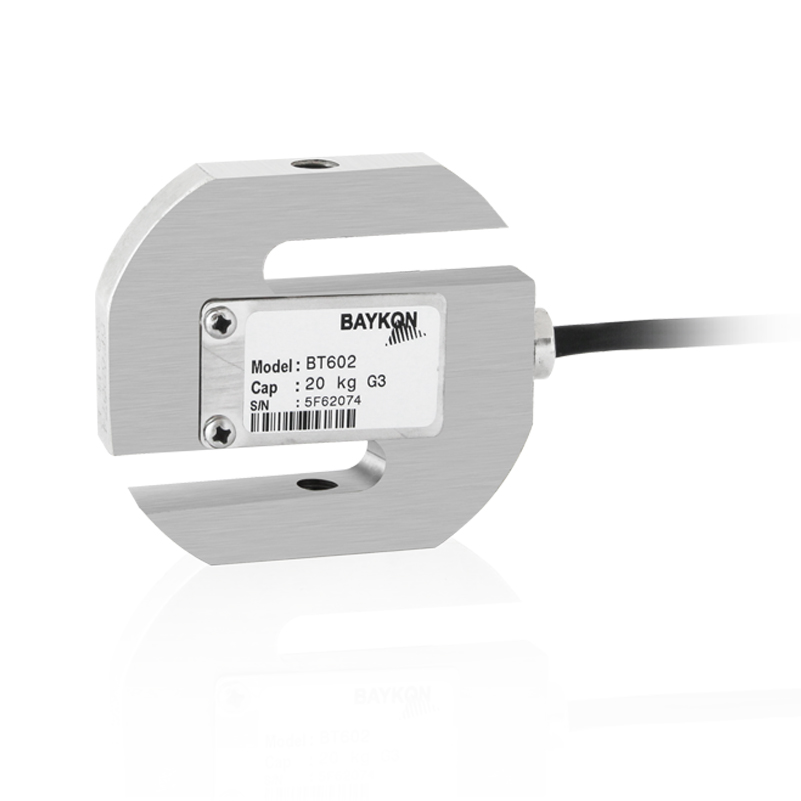

BT602 TENSION LOAD CELL
Baykon BT602 is low-cost and high performance BT602 Tension Type Load Cell. They are manufactured from high durability alloy steel construction.
BT602 series load cells perfectly fit for use in low capacities weighing applications, suspended hopper weighing and general test or force measurement.
Key Features
– Capacities; 20 kg / 30 kg / 50 kg
– Alloy Steel Construction
– Protection Class IP65

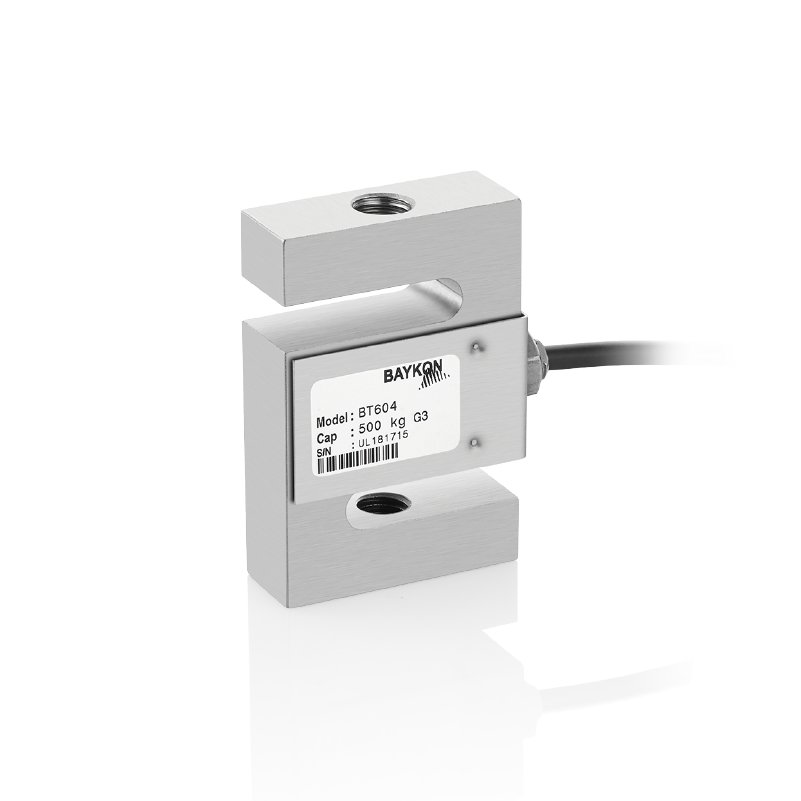

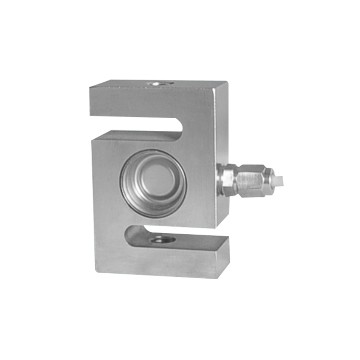

BT604 TENSION LOAD CELL
Baykon BT604 is nickel plated alloy steel BT604 S Type Load Cell. It perfectly fits for use in industrial weighing applications such as crane scales, suspended hopper scales, convertion of mechanical scales and test machines.
Key Features
– Capacities: 25 kg~5 t
– Nickel Plated Alloy Steel Construction
– Tension and Compression Applications
– Protection Class: IP67
BT605S TENSION LOAD CELL
Baykon BT605S is S Type Load Cell with IP67 protected. It perfectly fits for use in industrial applications such as crane scales, suspended hopper scales, convertion of mechanical scales and testing equipment.
Key Features
– Capacities: 200 kg~1000 kg
– Stainless Steel Construction
– Tension and Compression Applications
– Protection Class: IP67
BT610 / BT610S TENSION LOAD CELL
Baykon BT610 alloy steel / BT610S is stainless steel S Type Load Cell with IP66 protected. It perfectly fits for use in industrial applications such as crane scales, suspended hopper scales, convertion of mechanical scales and testing equipment.
Key Features
– Capacities: 100 kg~5000 kg
– Alloy Steel and Stainless Steel Construction
– Tension and Compression Applications
– Protection Class: IP66

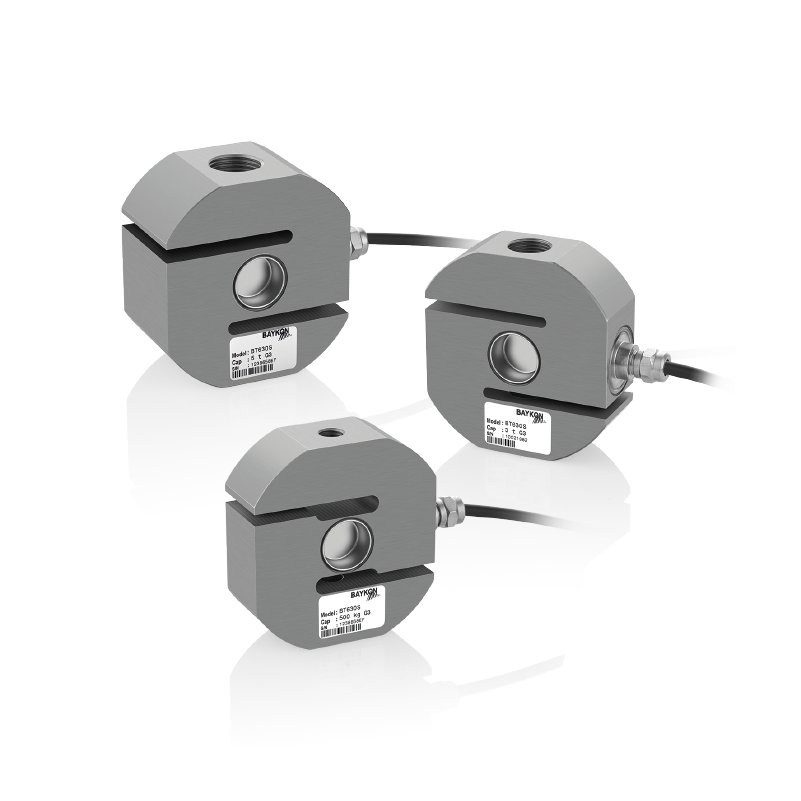

BT630S TENSION LOAD CELL
Baykon BT630S is welded stainless steel BT630S S Type Load Cell with IP68 protected. It perfectly fits for use in industrial applications such as crane scales, suspended hopper scales, convertion of mechanical scales and testing equipment.
Key Features
– Capacities: 0.5~6 t
– Extremely Robust
– Stainless Steel Construction
– Tension and Compression Applications
– Protection Class: IP68
BY404 TENSION LOAD CELL
Baykon BY404 is steel S Type Load Cell alloy steel IP67 protected load cell. It perfectly fits for use in industrial applications such as high capacity crane scales and testing equipment.
Key Features
– Capacities: 15~150 t
– Alloy Steel Construction
– Protection Class: IP67
– High Accuracy

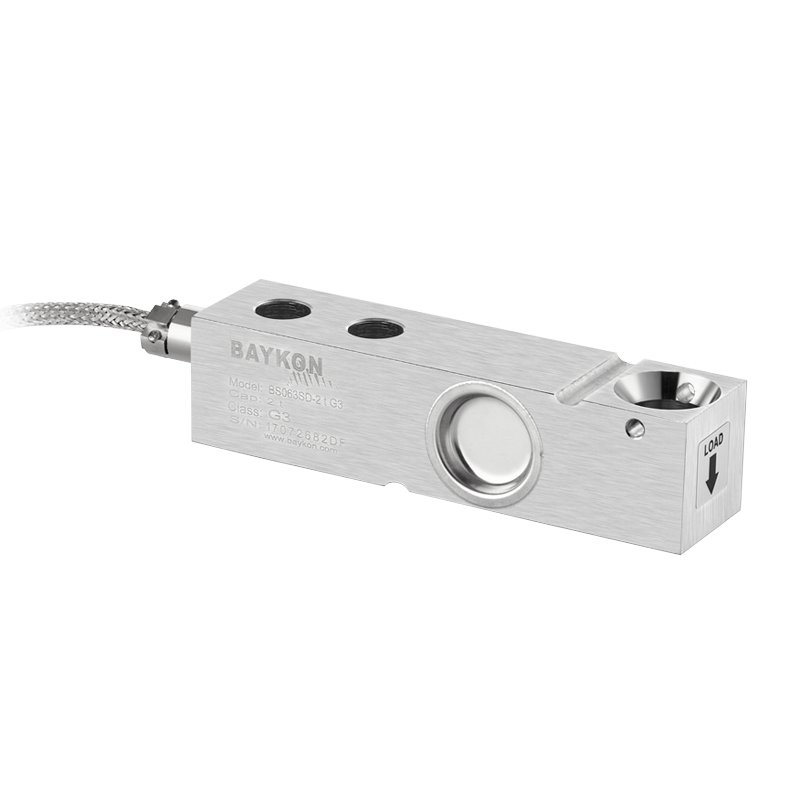

BS063SD DIGITAL LOAD CELL
Baykon BS063SD Digital Load Cells are designed for quick maintenance, more precision, higher confidence in weighing applications. They have high protection structures and intelligent microprocessors integrated into them and represent the latest in weighing technology, high accuracy and reliability along. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.

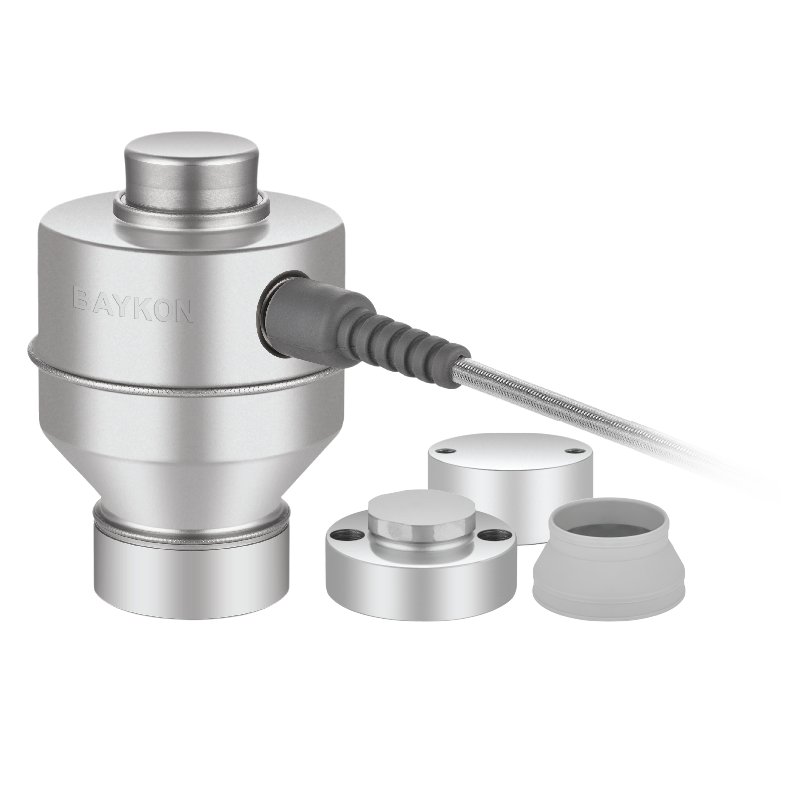

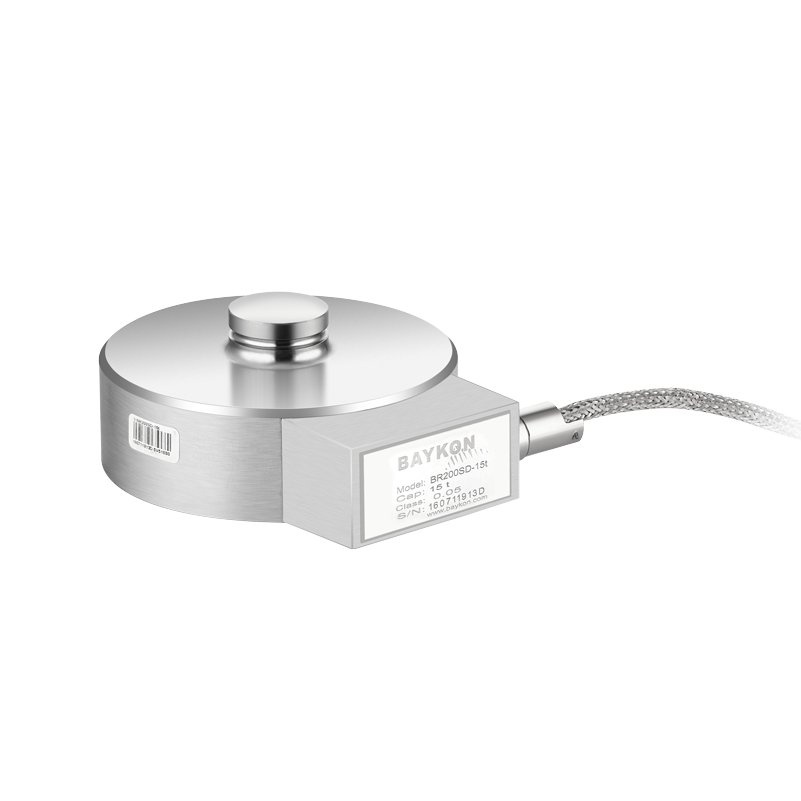

BR200SD DIGITAL LOAD CELL
Baykon BR200SD Digital Load Cells are designed for quick maintenance, more precision, higher confidence in weighing applications. They have high protection structures and intelligent microprocessors integrated into them and represent the latest in weighing technology, high accuracy and reliability along. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.
BR110SD DIGITAL LOAD CELL
Baykon BR110SD Digital Load Cells are designed for quick maintenance, more precision, higher confidence in weighing applications. They have high protection structures and intelligent microprocessors integrated into them and represent the latest in weighing technology, high accuracy and reliability along. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.
BR016D DIGITAL LOAD CELL
Baykon BR016D Digital Load Cells are designed to use mainly for vehicle scales and similar heavy-capacity weighing applications. It is a compression type load cell with an integral rocker-pin design that automatically aligns load forces for accurate weighing. With its Alloy steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments. Baykon BR016D Digital Load Cells provide fast and effective service opportunity with technologic design structure.

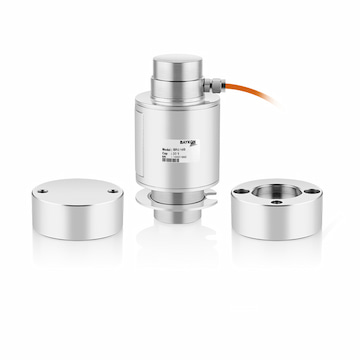

BR030SD DIGITAL LOAD CELL
Baykon BR030SD Digital Load Cells are designed to use mainly for vehicle scales and similar heavy-capacity weighing applications. It is a compression type load cell with an integral rocker-pin design that automatically aligns load forces for accurate weighing. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.

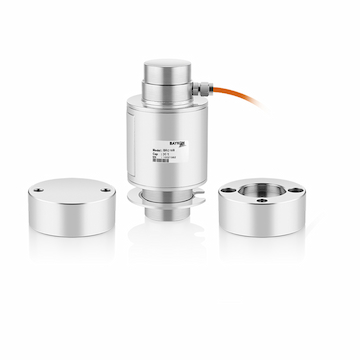

BR032SD DIGITAL LOAD CELL
Baykon BR032SD Digital Load Cells are designed to use mainly for vehicle scales and similar heavy-capacity weighing applications. It is a compression type load cell with an integral rocker-pin design that automatically aligns load forces for accurate weighing. With its stainless steel, IP68 hermetically sealed enclosure, it can be used safely in harsh environments.

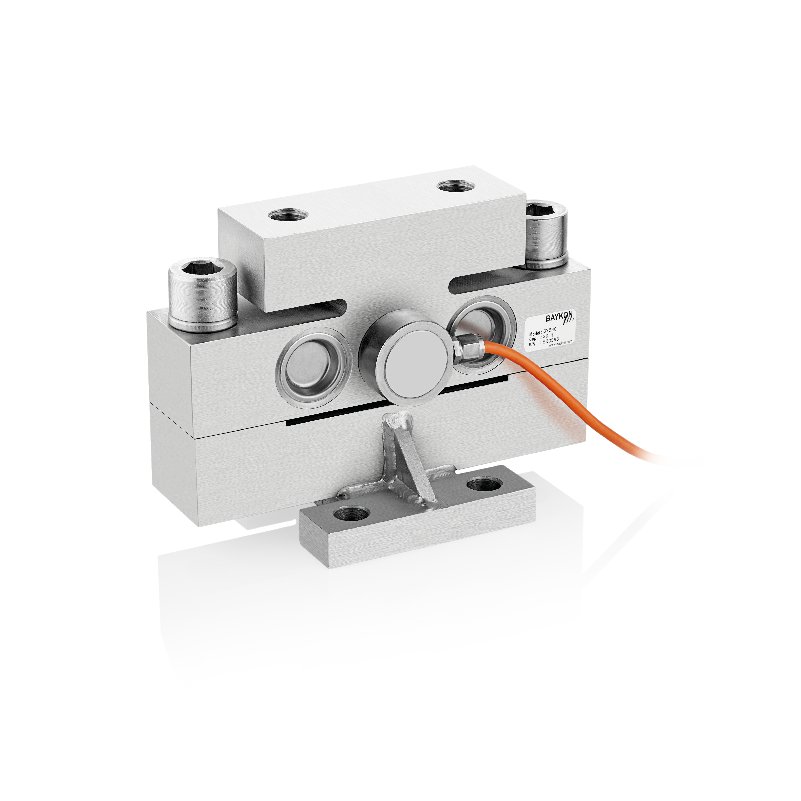

BY530 Special Load Cell
Baykon BY530 Special Type Load Cell, IP 68 Protected Steel Construction Double Ended Shear Beam Load Cell. It is specifically designed for heavy capacity weighing systems and industrial process.
Key Features
– Capacities: 10~40 t
– Material: Alloy Steel
– Protection Class: IP68
– High Accuracy

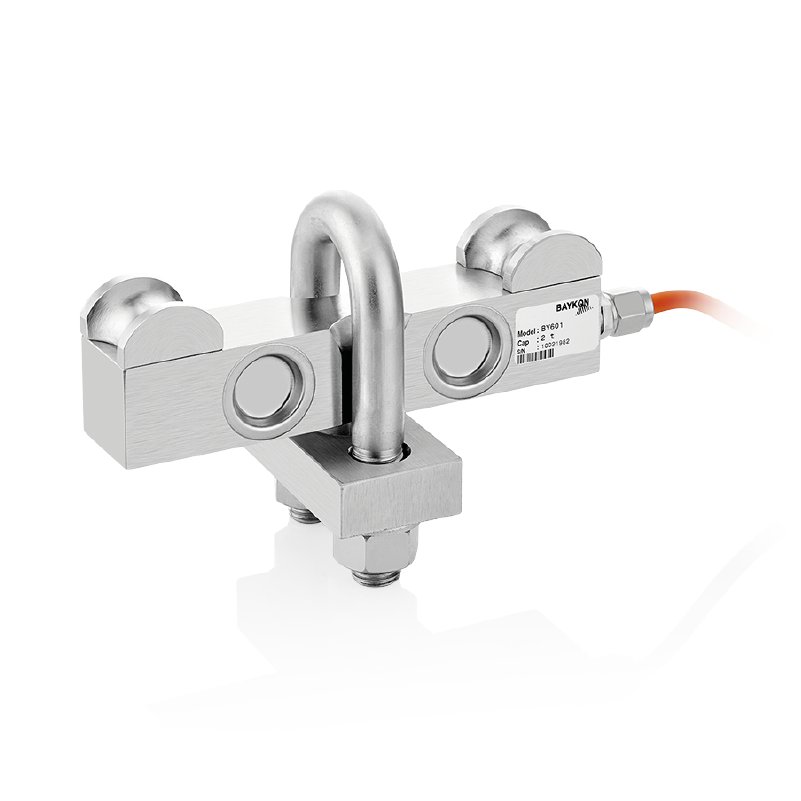

BY601 SPECIAL LOAD CELL
Baykon BY601 is Welded Steel Construction Load Cell used for wire rope tension force measurement, overload alarming and force measurement of similar testing systems.
Key Features
– Capacities: 1~3 t
– Material: Alloy Steel
– Protection Class: IP67
– High Accuracy

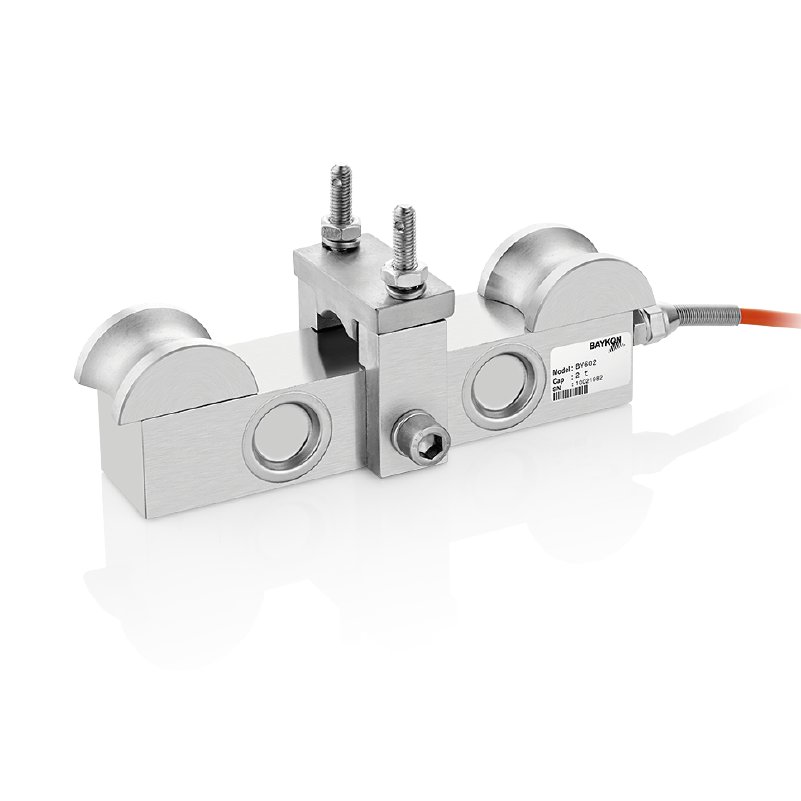

BY602 SPECIAL LOAD CELL
Baykon BY602 is Welded Steel Construction Load Cell used for wire rope tension force measurement, overload alarming and force measurement of similar testing systems.
Key Features
– Capacities: 5~10 t
– Material: Alloy Steel
– Protection Class: IP67
– High Accuracy
BY801 / BY802 SPECIAL LOAD CELL
Baykon BY802 force measurement Load Cells are specifically designed and manufactured for the compression & tension test machines. They are made of special material for precise measurement. Depending on the application, they can be used with various
Key Features
– Capacities: 100 kg~100 t
– Material: Alloy Steel
– Protection Class: IP67
– High Accuracy

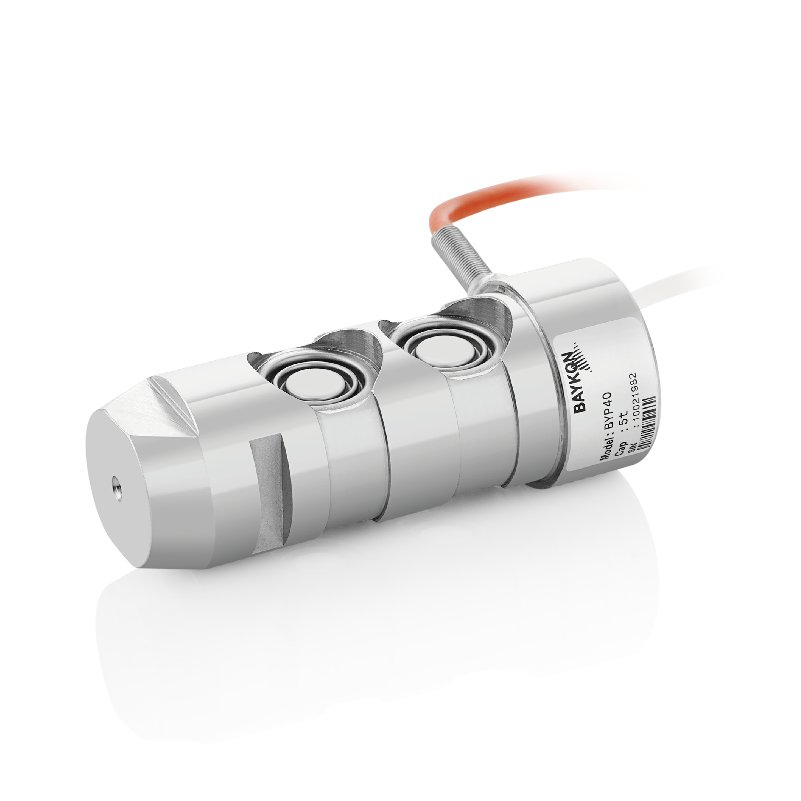

BYP40 SPECIAL LOAD CELL
Baykon BYP40 is a High Performance Steel Construction Pin Type Load Cell. It is used for force measurement applications in various industries; heavy industry, mining, offshore, subsea and aerospace.
Key Features
– Capacities: 1~5 t
– Material: Alloy Steel
– Protection Class: IP67

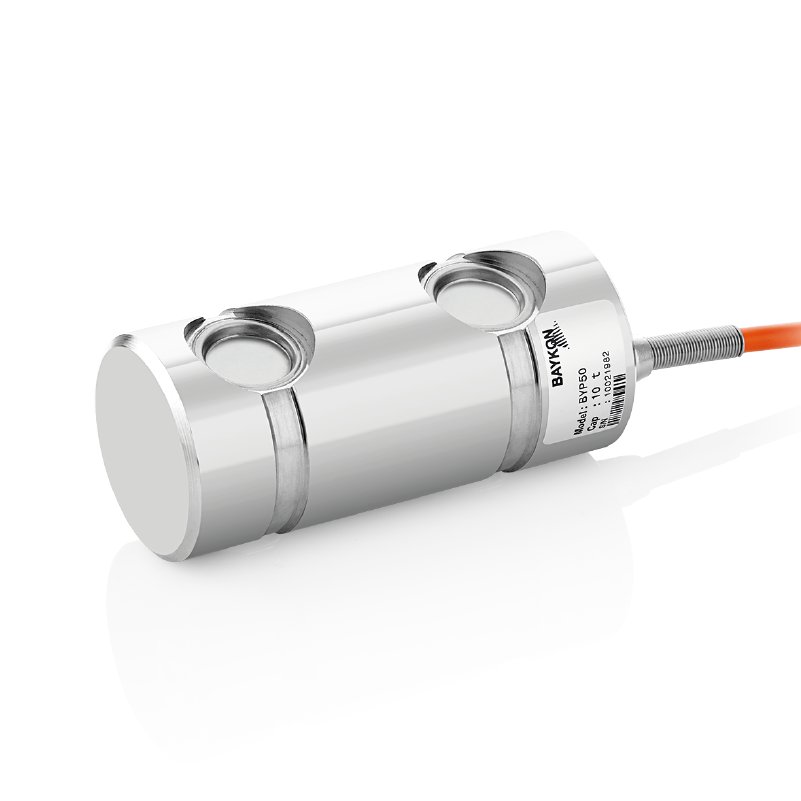

BYP50 SPECIAL LOAD CELL
Baykon BYP50 is a High Performance Steel Construction Pin type Load Cell. It is used for force measurement applications in various industries; heavy industry, mining, offshore, subsea and aerospace.
Key Features
– Capacity: 5~10 t
– Material: Alloy Steel
–Protection Class: IP67
BYP60 SPECIAL LOAD CELL
Baykon BYP60 is a High Performance Steel Construction Pin Type Load Cell. It is used for force measurement applications in various industries; heavy industry, mining, offshore, subsea and aerospace.
Key Features
– Capacities: 20~100 t
– Material: Steel Construction
– Protection Class: IP67

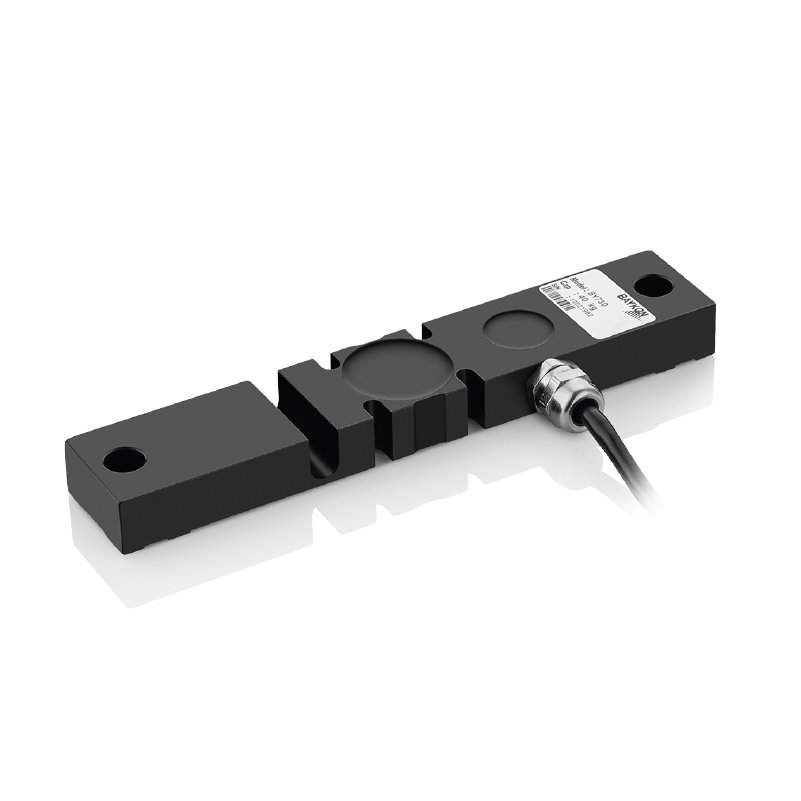

BY730 EXTENSOMETER SPECIAL LOAD CELL
Baykon BY730 Extensometer is Designed for Silo Inventory Monitoring. The sensor measures the elastic deformation that occurs in the support legs of a silo. It features a low activation force and a high-gain analogue output, perfect for measuring forces in rigid structures.
Key Features
– Strain Gage Based Sensor
– Material: Alloy Steel
– Easy Montage With 2 Bolt Holes
– Protection Class: IP66
